SIBO launches CR35D4 conductive plastic potentiometer – the upgraded iteration product of WDD35D4 through a large number of experiments and optimization of the structure and process.
WDD35D4 series conductive plastic potentiometer, as star product of SIBO, has earned a great many of praises since it was launched into the market. Also as the classical product of potentiometers, customers are increasingly demanding its price in the increasingly fierce competition environment. Even though the sales price has dropped from USD16-32 to USD 6.5-8, many customers still find it difficult to accept. There are even individual companies that try to pull in customers by cutting corners and other unscrupulous means. Such companies will eventually be eliminated from the market.
SIBO listens carefully to the voice of users and re-examines various production stages of WDD35D4 series product. This product adopts the technology from the 1980s. Due to the technical limitations from that time, its complicated process and complex assembly result in the bottlenecks of cost and capacity. With more resources and more advanced technology, in order to meet the demands of price and quality from customers, SIBO launches CR35D4 conductive plastic potentiometer – the upgraded iteration product of WDD35D4 through a large number of experiments and optimization of the structure and process.
CR35D4, as the upgraded iteration product of WDD35D4, let's have a look at its advantages:
1. Structure Upgrade

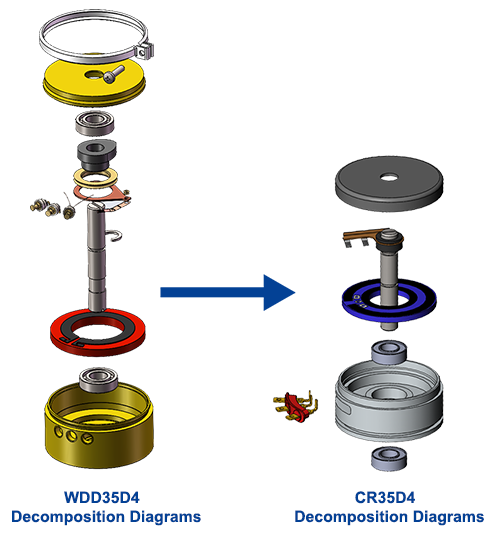

The internal structure of the classical product WDD35D4 is a Single guideway, which connected with collector wire lead to output. The process is complex and the cost is high. The upgraded CR35D4 Uses dual guideways. The inner and outer conductive plastic rings instead of collector wire and collector ring make our product thinner to save space, thus thinning the thickness and saving space. The simplification of the structure makes assembly more convenient and more economical. The technical difficulties of WDD35D4 have been overcome by us today.

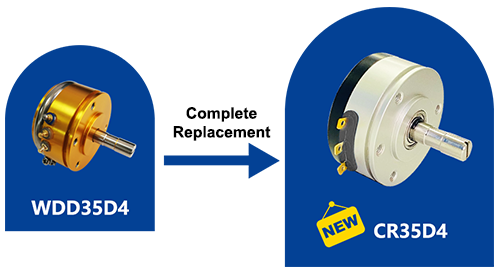

2. Complete Replacement of Performance Dimensions

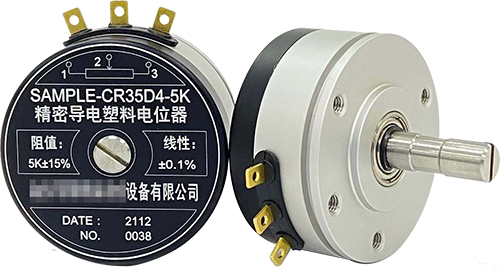

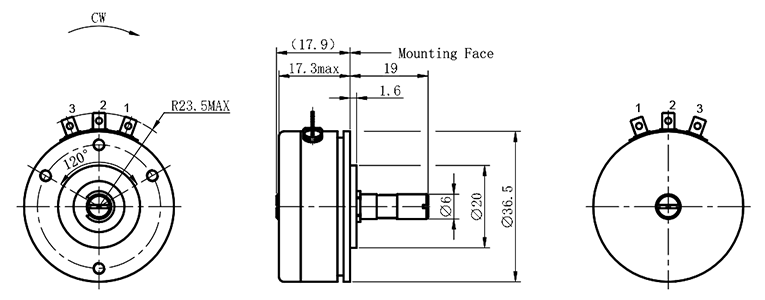

The upgraded CR35D4 has the same performance as WDD35D4, and also has a couple of precision ball bearings. The installation size, including diameter, position size and mounting holes position is exactly the same as WDD35D4. The servo installation mode and two sizes of screw installation mode are retained to ensure the perfect substitutes when end-users iterate to replace WDD35D4. Black and white color blending looks simple and classical. The overall thickness gets thinner. The product appearance is more industrialized and modern. At the same time, gold-coated wire terminal makes more convenient to weld. It is also available to provide clip type wire terminal to achieve solderless requirement.
3. ODM Customization Available
ODM (Original Design Manufacturer) means brand customization. This option provided by SIBO makes it possible to leave your own unique label on the housing case of CR35D4 product.
4. High Price-performance
CR35D4 has more favorable price than WDD35D4 in ensuring performance at the same time, really economical, which is your first choice for cost reduction.
Only the cost reduction combining materials, innovation, technology and process can really achieve to reduce the price of product. SIBO, with technology as the cornerstone and innovation as the plan as well as strength as the guarantee, adheres to the pursuit of making the price of products reflect the due value and returning the most benefit to customers!
