Mechanical rotating angle

360°（Endless）

Protection grade (IP)

IP65

Rotating torque

<2mN·m(<20gf·cm)

Rotational life expectancy

Approx. 100,000,000

Mass

Approx.14g（Without nut and inner tooth washer）

Temperature coefficient

<±0.3%Vout·FS

Operating temperature range

-40℃～+105℃

Storage temperature range

-40℃～+105℃

Thermal shock

-40℃~+105℃, 5 cycles

Exposure at low temperature

-40℃, 24 hours

Exposure at high temperature

+105℃, 1,000 hours

Vibration

10~2,000Hz 196m/s2, 12 hours

Shock

980m/s2 6ms, 18 times

EMS tolerance

100V/m (80MHz～6GHz, ISO11452-1～-3)

ESD tolerance

Contact discharge ±4KV，Air discharge ±8KV，IEC 61000-4-2

Standard model

HSM10

Applied voltage

5V±10%D.C.

Effective output

10%Vin±3%Vin~90%Vin±3%Vin

Current consumption

≤13mA（Single output）, ≤26mA（Dual output & Dual independent output）

Load resistance

>10kΩ

Effective electrical angle

360°

Independent linearity tolerance

±0.5%FS (FS=360°)

Special effective electrical angle

90 °, 180 °, 270 ° or any arbitrary angles

Special shaft

Special machining on the shaft

Special output

Cross, parallel, Dual independent output, PWM

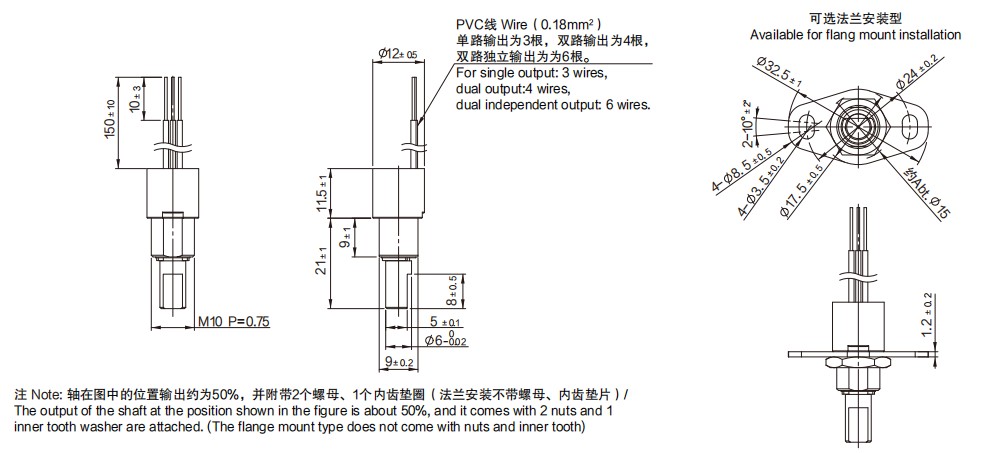

Speical Installation

Flange mount
