FCP22AC
FCP22AC

FCP22AC

1-turn Conductive Plastic POT.

瀏覽量: Вернуться: 2023-01-09

    Характеристики:

  • Conductive Plastic

  • Bushingmount

  • Low-cost Item

  • RoHS Compliant

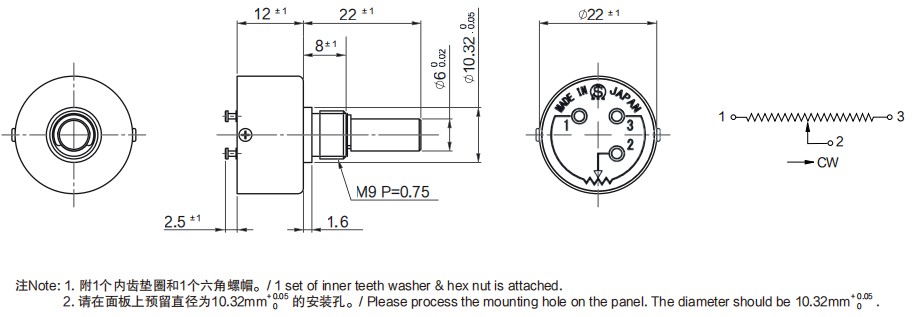

Измерение


Параметр

Environmental Specifications

Operating temperature range

-55℃~+105℃

Temperature cycle

5 cycles under -55℃~+105℃, total resistance value variation: <± 10%, No mechanical damage.

Exposure at low temperature

24 hours at -55℃, Total resistance value variation: <±5%, No mechanical damage.

Exposure at high temperature

1,000 hours at 105℃, Total resistance value variation: <±10%, No mechanical damage.

Vibration

10Hz~2000Hz, 147m/s², 12 hours, Total resistance value variation: <±2%, No mechanical and electrical damage.

Shock

90m/s², 11ms, 18 times, Total resistance value variation: <±1%, No mechanical and electrical damage.

Moisture resistance

40℃, 95%RH, 120 hours, Total resistance value variation: <±10%,Insulation resistance: >10MΩ.

Resistance temperature coefficient

±400p.p.m./°C

General Electrical Specifications

Standard resistance values

1k, 2k, 5k, 10k(Ω)

Special practical resistance values

500, 20k, 50k, 100k(Ω)

Total resistance tolerance

Standard class ±15%(L),Precision class ±10%(K)

Independent linearity tolerance

Standard class ±1.5%,Precision class ±1.0%

Resolution

Essentially infinite

Output smoothness

<0.1% against input voltage

Contact resistance variation

<2%C.R.V.

Electrical travel

320°±5°

Power rating

1.0W

Insulation resistance

>1000MΩ (500V.D.C.)

Dielectric strength

500V.A.C./1 min

Special Specifications Available

Special shaft type

Shaft with front and rear extension (Rear shaft with 3mm dia. and 20mm length), shaft dia. (φ6.35mm) & bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Extra tap

Extra tap (Available up to 1 tap)

With stopper

With stopper (Rotating angle is 320° and stopper strength is 0.9N?m [9kgf?cm])

Special protection grade (IP)

IP54
